2022长城杯 rabbit_hole

分析

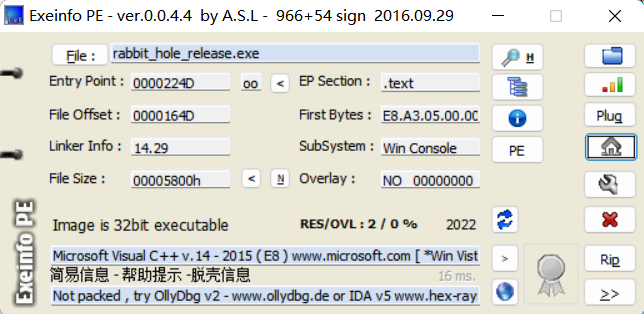

首先查壳

image-20220909213320146

32位无壳，放入IDA中看

一开始里头好多花指令，直接手动patch掉然后去看主函数（这里去花就不演示了，真的很多，后序有空会发去花的教程）

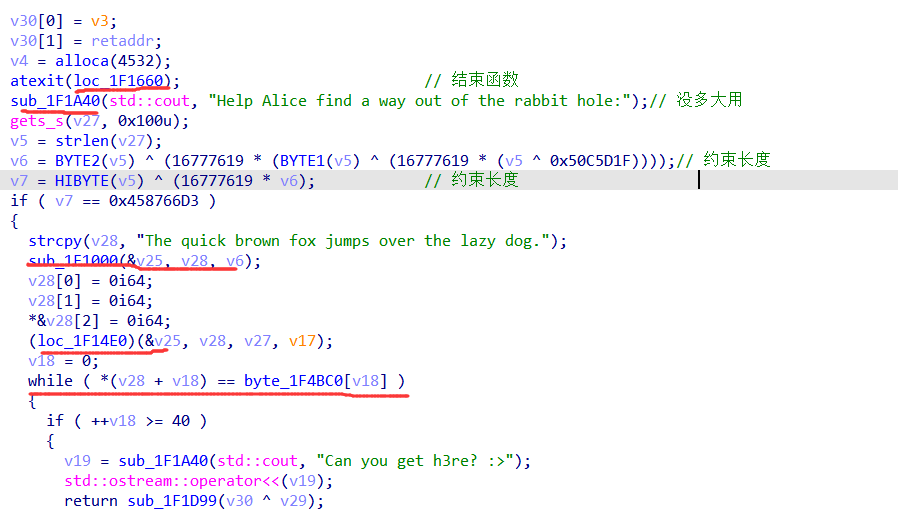

image-20220909220130369

首先可以看到四个函数，前面两个点进去都很复杂然后就直接去看它的汇编代码

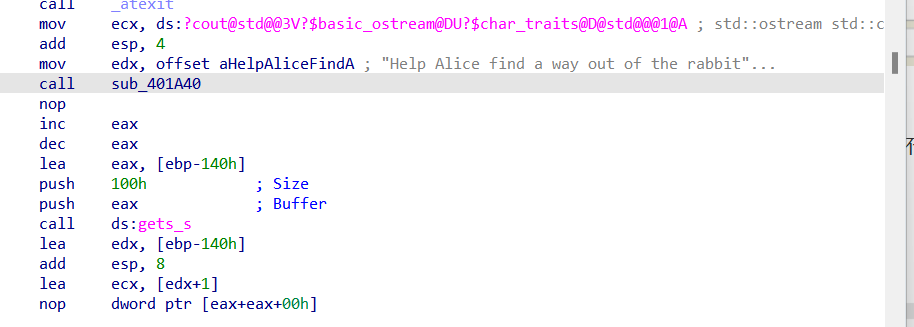

image-20220909213703465

发现没什么用，然后看到v6和v7是进行长度约束的，得到长度后方便后面动调，接着来算一下长度为多少

a = BitVec("a", 32)
v6 = ZeroExt(24, Extract(23, 16, a)) ^ (
        0x1000193 * (ZeroExt(24, Extract(15, 8, a)) ^ (0x1000193 * (a ^ 0x50C5D1F))))
v7 = ZeroExt(24, Extract(31, 24, a)) ^ (0x1000193 * v6)
s = Solver()
s.add(v7 == 0x458766D3)
s.add(a != 3255316991)
print(s.check(), s.model())
#这里浅用了一下别人的脚本，最近python被我玩坏了装不上z3包，课比较多没时间弄

然后能得出134的字符长度，接着我就下断点在了 sub_1F1000函数

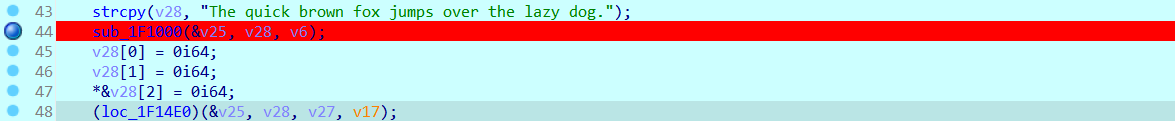

image-20220909220540336

发现它会直接跳转到loc_1F14E0这里，然后我就进去loc_1F14E0中看了看

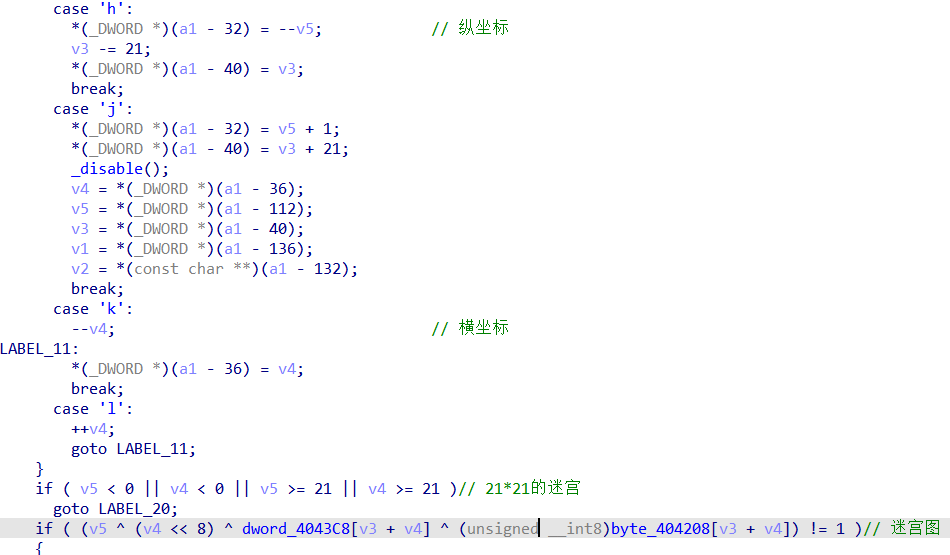

image-20220909220759058

很像一个迷宫图，“h”代表上一移行；“j”代表下移一行；“k”代表左移一位；“l”代表右移一位，然后就写个脚本试试看

x1 = [0x00000044, 0x00000124, 0x000002BD, 0x0000033E, 0x00000432, 0x0000059D, 0x0000068F, 0x00000753, 0x000008CC,
             0x0000094F, 0x00000A8D, 0x00000B2C, 0x00000C7C, 0x00000DF2, 0x00000EBA, 0x00000F30, 0x0000100D, 0x000011C7,
             0x00001257, 0x00001319, 0x00001491, 0x000000F4, 0x000001E7, 0x00000229, 0x0000034F, 0x000004EE, 0x00000547,
             0x0000067C, 0x000007D8, 0x000008F8, 0x000009D8, 0x00000A79, 0x00000BD1, 0x00000C7A, 0x00000D32, 0x00000E82,
             0x00000FD9, 0x000010DF, 0x00001120, 0x000012D6, 0x000013EE, 0x0000145F, 0x00000027, 0x0000016C, 0x00000265,
             0x000003B7, 0x0000049F, 0x0000054B, 0x000006C8, 0x000007DF, 0x00000866, 0x0000099F, 0x00000A0C, 0x00000B2D,
             0x00000C0C, 0x00000DBF, 0x00000E19, 0x00000F83, 0x000010F1, 0x00001169, 0x0000125C, 0x000013A3, 0x000014AE,
             0x0000000C, 0x00000164, 0x00000274, 0x0000033D, 0x000004BD, 0x00000582, 0x00000696, 0x00000784, 0x00000846,
             0x000009AB, 0x00000ABA, 0x00000BBA, 0x00000CFC, 0x00000DB7, 0x00000E18, 0x00000F96, 0x0000106C, 0x00001138,
             0x00001267, 0x000013F5, 0x00001481, 0x00000072, 0x0000010E, 0x0000022C, 0x000003AF, 0x00000489, 0x000005B3,
             0x000006B3, 0x000007C5, 0x0000080B, 0x0000091E, 0x00000A3E, 0x00000BF8, 0x00000C73, 0x00000D75, 0x00000EE2,
             0x00000F5A, 0x00001038, 0x0000119A, 0x000012E9, 0x0000133F, 0x00001487, 0x000000AA, 0x00000137, 0x00000298,
             0x00000346, 0x000004D3, 0x000005D5, 0x0000069E, 0x00000711, 0x000008B8, 0x0000097D, 0x00000AD9, 0x00000BD3,
             0x00000CC7, 0x00000D18, 0x00000E51, 0x00000FB7, 0x000010CB, 0x000011FC, 0x00001274, 0x00001396, 0x00001441,
             0x00000082, 0x000001A5, 0x0000025F, 0x000003E8, 0x00000487, 0x00000528, 0x000006F7, 0x00000797, 0x000008F3,
             0x000009AC, 0x00000ADC, 0x00000B65, 0x00000C73, 0x00000DE6, 0x00000EBC, 0x00000FCD, 0x000010C3, 0x000011AB,
             0x0000123F, 0x000013A0, 0x00001450, 0x00000043, 0x00000122, 0x000002AD, 0x000003CD, 0x0000042D, 0x00000537,
             0x00000692, 0x000007DB, 0x00000810, 0x00000936, 0x00000A49, 0x00000B65, 0x00000C3E, 0x00000DA3, 0x00000E1B,
             0x00000F95, 0x000010E6, 0x000011AF, 0x00001228, 0x000013B5, 0x00001448, 0x0000002F, 0x0000015B, 0x0000024E,
             0x0000032A, 0x000004D2, 0x0000053C, 0x000006D6, 0x000007C9, 0x0000082F, 0x00000957, 0x00000AE2, 0x00000B26,
             0x00000C98, 0x00000D57, 0x00000EC3, 0x00000FC2, 0x000010DE, 0x00001118, 0x000012AB, 0x00001386, 0x0000144F,
             0x000000D5, 0x000001C9, 0x000002F3, 0x000003E7, 0x000004C6, 0x000005C0, 0x000006C2, 0x000007D1, 0x000008F0,
             0x000009B0, 0x00000A1D, 0x00000B3D, 0x00000C2A, 0x00000D62, 0x00000E64, 0x00000F20, 0x000010FF, 0x000011EA,
             0x00001217, 0x000013F0, 0x000014F6, 0x000000E0, 0x000001F0, 0x000002E2, 0x0000037B, 0x00000456, 0x000005DE,
             0x000006E6, 0x00000772, 0x000008DF, 0x00000970, 0x00000A29, 0x00000B16, 0x00000C62, 0x00000DFB, 0x00000E33,
             0x00000F6A, 0x000010C8, 0x000011B2, 0x00001271, 0x000013F8, 0x000014C8, 0x000000A9, 0x00000192, 0x0000026F,
             0x00000342, 0x000004A7, 0x00000533, 0x0000065F, 0x00000707, 0x000008B9, 0x00000900, 0x00000ADC, 0x00000B90,
             0x00000C4C, 0x00000D7B, 0x00000E81, 0x00000FC7, 0x00001004, 0x0000118D, 0x000012C0, 0x00001375, 0x000014EB,
             0x000000A7, 0x00000147, 0x000002C6, 0x00000374, 0x0000044F, 0x000005EE, 0x0000066D, 0x00000719, 0x00000807,
             0x00000970, 0x00000A07, 0x00000BD5, 0x00000C18, 0x00000D4D, 0x00000EFE, 0x00000F20, 0x00001021, 0x0000116C,
             0x00001218, 0x000013CC, 0x0000144F, 0x000000A8, 0x00000117, 0x000002CA, 0x0000033F, 0x000004C5, 0x00000585,
             0x000006BB, 0x0000073A, 0x000008C8, 0x0000095A, 0x00000A8D, 0x00000B2F, 0x00000CC6, 0x00000DD8, 0x00000EFD,
             0x00000F73, 0x000010F8, 0x00001168, 0x00001280, 0x0000137E, 0x00001466, 0x000000AA, 0x00000194, 0x000002E0,
             0x000003A2, 0x000004B4, 0x0000057F, 0x00000640, 0x000007D0, 0x00000865, 0x00000986, 0x00000A38, 0x00000B13,
             0x00000C7C, 0x00000DBF, 0x00000EFE, 0x00000F95, 0x00001066, 0x00001117, 0x000012BE, 0x00001373, 0x000014E4,
             0x000000F9, 0x0000015F, 0x0000026C, 0x000003DF, 0x00000434, 0x00000569, 0x00000658, 0x00000768, 0x000008B4,
             0x00000976, 0x00000A56, 0x00000B68, 0x00000CBF, 0x00000DCB, 0x00000E81, 0x00000FE7, 0x00001062, 0x00001196,
             0x00001233, 0x000013FE, 0x00001486, 0x000000E7, 0x000001AF, 0x00000205, 0x00000371, 0x00000482, 0x000005F0,
             0x00000670, 0x0000072E, 0x00000849, 0x00000925, 0x00000A5B, 0x00000B0E, 0x00000C7F, 0x00000D75, 0x00000EF4,
             0x00000F61, 0x0000101D, 0x0000116B, 0x0000127E, 0x00001382, 0x00001404, 0x0000004D, 0x0000015C, 0x0000027F,
             0x0000033F, 0x00000442, 0x000005B6, 0x0000064D, 0x00000780, 0x0000086B, 0x000009DC, 0x00000AF1, 0x00000B79,
             0x00000C66, 0x00000D6E, 0x00000E9D, 0x00000F23, 0x0000107B, 0x00001126, 0x000012D5, 0x0000133F, 0x000014AE,
             0x0000007D, 0x000001AD, 0x000002BB, 0x000003A1, 0x00000473, 0x0000054E, 0x000006C0, 0x000007D0, 0x0000083F,
             0x000009DA, 0x00000AE6, 0x00000BA9, 0x00000CA0, 0x00000DC3, 0x00000E30, 0x00000F8E, 0x00001066, 0x000011CD,
             0x0000124B, 0x00001361, 0x000014B8, 0x000000EE, 0x0000016D, 0x00000275, 0x0000033C, 0x00000473, 0x000005A8,
             0x00000679, 0x00000759, 0x0000080B, 0x000009B4, 0x00000AC7, 0x00000B03, 0x00000C07, 0x00000DAE, 0x00000E82,
             0x00000FF8, 0x00001050, 0x000011DF, 0x00001261, 0x000013A0, 0x000014D5, 0x00000053, 0x000001B7, 0x000002D8,
             0x000003B8, 0x00000478, 0x000005BC, 0x000006CC, 0x000007DE, 0x000008C6, 0x00000990, 0x00000A3F, 0x00000B21,
             0x00000CBF, 0x00000DBB, 0x00000EDC, 0x00000FB1, 0x0000103B, 0x0000116B, 0x0000126B, 0x000013E0, 0x00001434]
x2 = [0x45, 0x24, 0xBD, 0x3E, 0x32, 0x9D, 0x8F, 0x53, 0xCC, 0x4F, 0x8D, 0x2C, 0x7C, 0xF2, 0xBA, 0x30, 0x0D, 0xC7,
             0x57, 0x19, 0x91, 0xF4, 0xE6, 0x28, 0x4F, 0xEE, 0x47, 0x7C, 0xD8, 0xF8, 0xD8, 0x79, 0xD1, 0x7A, 0x32, 0x82,
             0xD9, 0xDF, 0x20, 0xD6, 0xEF, 0x5E, 0x24, 0x6E, 0x67, 0xB4, 0x9D, 0x49, 0xCA, 0xDD, 0x64, 0x9D, 0x0E, 0x2F,
             0x0E, 0xBD, 0x1B, 0x81, 0xF3, 0x6B, 0x5F, 0xA1, 0xAC, 0x0E, 0x66, 0x76, 0x3F, 0xBF, 0x80, 0x94, 0x86, 0x44,
             0xA9, 0xB8, 0xB8, 0xFE, 0xB5, 0x1A, 0x94, 0x6F, 0x3B, 0x64, 0xF6, 0x82, 0x76, 0x0A, 0x28, 0xAB, 0x8D, 0xB7,
             0xB7, 0xC1, 0x0F, 0x1A, 0x3A, 0xFC, 0x77, 0x71, 0xE6, 0x5F, 0x3C, 0x9F, 0xEC, 0x3A, 0x83, 0xAF, 0x32, 0x9D,
             0x43, 0xD6, 0xD0, 0x9B, 0x14, 0xBD, 0x78, 0xDC, 0xD6, 0xC2, 0x1D, 0x54, 0xB3, 0xCE, 0xF8, 0x71, 0x92, 0x44,
             0x85, 0xA2, 0x58, 0xEF, 0x80, 0x2F, 0xF0, 0x90, 0xF4, 0xAB, 0xDB, 0x63, 0x74, 0xE1, 0xBB, 0xCA, 0xC5, 0xAC,
             0x39, 0xA7, 0x56, 0x45, 0x25, 0xAA, 0xCA, 0x2A, 0x30, 0x95, 0xDC, 0x17, 0x31, 0x4F, 0x62, 0x39, 0xA4, 0x1C,
             0x93, 0xE1, 0xA9, 0x2F, 0xB3, 0x4F, 0x26, 0x53, 0x47, 0x23, 0xDB, 0x34, 0xDE, 0xC1, 0x27, 0x5F, 0xEB, 0x2E,
             0x91, 0x5E, 0xCA, 0xCB, 0xD6, 0x11, 0xA3, 0x8F, 0x47, 0xDD, 0xC0, 0xFB, 0xEE, 0xCF, 0xC9, 0xCA, 0xD9, 0xF8,
             0xB9, 0x15, 0x34, 0x23, 0x6B, 0x6D, 0x28, 0xF6, 0xE2, 0x1E, 0xF8, 0xFF, 0xEB, 0xFB, 0xE9, 0x70, 0x5C, 0xD4,
             0xED, 0x78, 0xD4, 0x7A, 0x22, 0x1C, 0x69, 0xF1, 0x39, 0x61, 0xC2, 0xB9, 0x7B, 0xF3, 0xC2, 0xA2, 0x99, 0x64,
             0x48, 0xAC, 0x38, 0x55, 0x0C, 0xB3, 0x0B, 0xD6, 0x9B, 0x46, 0x70, 0x8B, 0xCD, 0x0F, 0x87, 0xCB, 0x7F, 0xE0,
             0xAB, 0x4A, 0xCB, 0x79, 0x43, 0xE2, 0x60, 0x15, 0x0A, 0x7C, 0x0A, 0xD9, 0x15, 0x41, 0xF3, 0x2C, 0x2C, 0x61,
             0x14, 0xC1, 0x43, 0xA5, 0x1A, 0xC7, 0x33, 0xC9, 0x89, 0xB7, 0x37, 0xC4, 0x57, 0x81, 0x23, 0xCA, 0xD4, 0xF1,
             0x7E, 0xF4, 0x65, 0x8D, 0x72, 0x6B, 0xA4, 0x9A, 0xEE, 0xAC, 0xBA, 0x71, 0x4E, 0xDE, 0x6A, 0x88, 0x36, 0x1D,
             0x72, 0xB1, 0xF0, 0x9B, 0x69, 0x19, 0xB0, 0x7C, 0xEA, 0xF7, 0x51, 0x62, 0xD1, 0x3A, 0x67, 0x56, 0x66, 0xBA,
             0x79, 0x59, 0x66, 0xB1, 0xC5, 0x8F, 0xE9, 0x6C, 0x99, 0x3C, 0xF0, 0x89, 0xF6, 0xBF, 0x15, 0x61, 0x92, 0xE0,
             0x60, 0x3E, 0x59, 0x35, 0x4B, 0x1F, 0x6F, 0x65, 0xE4, 0x71, 0x0D, 0x7B, 0x6E, 0x93, 0x14, 0x5D, 0x4C, 0x6F,
             0x2F, 0x52, 0xA6, 0x5D, 0x90, 0x7B, 0xCC, 0xE1, 0x69, 0x77, 0x7E, 0x8D, 0x33, 0x6B, 0x37, 0xC4, 0x2F, 0xBF,
             0x6F, 0xBF, 0xA8, 0xB3, 0x61, 0x5C, 0xD2, 0xC2, 0x2D, 0xC8, 0xF4, 0xBB, 0xB2, 0xD0, 0x22, 0x9C, 0x75, 0xDF,
             0x59, 0x72, 0xAA, 0xFD, 0x7E, 0x67, 0x2E, 0x61, 0xBA, 0x6B, 0x4B, 0x19, 0xA6, 0xD5, 0x11, 0x15, 0xBC, 0x91,
             0xEB, 0x42, 0xCC, 0x72, 0xB2, 0xC6, 0x47, 0xA3, 0xCC, 0xAC, 0x6C, 0xA8, 0xD8, 0xCA, 0xD2, 0x84, 0x2B, 0x35,
             0xAB, 0xAF, 0xC8, 0xA5, 0x2F, 0x7F, 0x7F, 0xF5, 0x21, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00]
x3 = []
for i in range(21):
    for j in range(21):
        x3.append(x1[i*0x15+j]^x2[i*0x15+j]^i^(j<<8))
for i in range(0,441,21):#进行制表
    print(x3[i:i+21])#输出表

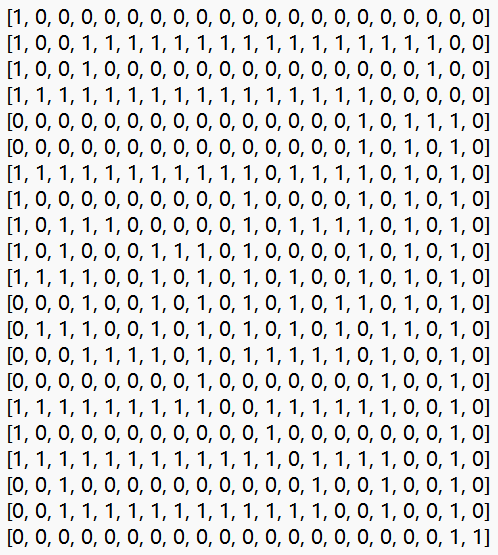

image-20220909221031716

这是迷宫图从左上角第一个1开始走，只能走1，然后得到

jjjllllllllllllllljjjjjjjjkjjkkkkhhhhhhhkkkkkkkkkkjjjjllljjjlllhhhhlljjjjjjkkkkkkkkjjlllllllllllhhlllllhhhlhhhhhhhhlljjjjjjjjjjjjjjjjl

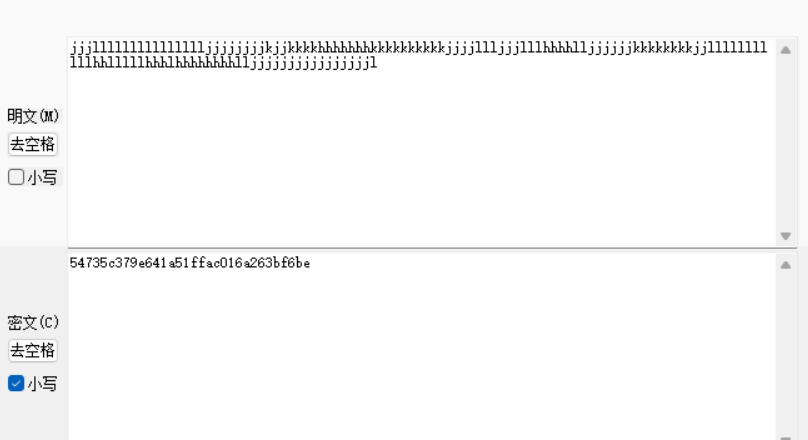

最后根据提示将得到的md5一下

image-20220909222738609

得到flag{54735c379e641a51ffac016a263bf6be}
